If you're specifying a motor for power tools — a drill, cutter, trimmer, sprayer, or other handheld or portable device — the real question isn't "brushed or brushless" in the abstract — it's which architecture fits your tool's envelope, duty cycle, and battery budget. SLW Motor builds micro DC, BLDC, coreless, and geared motors sized for exactly this class of equipment, from prototype samples through OEM/ODM production runs.

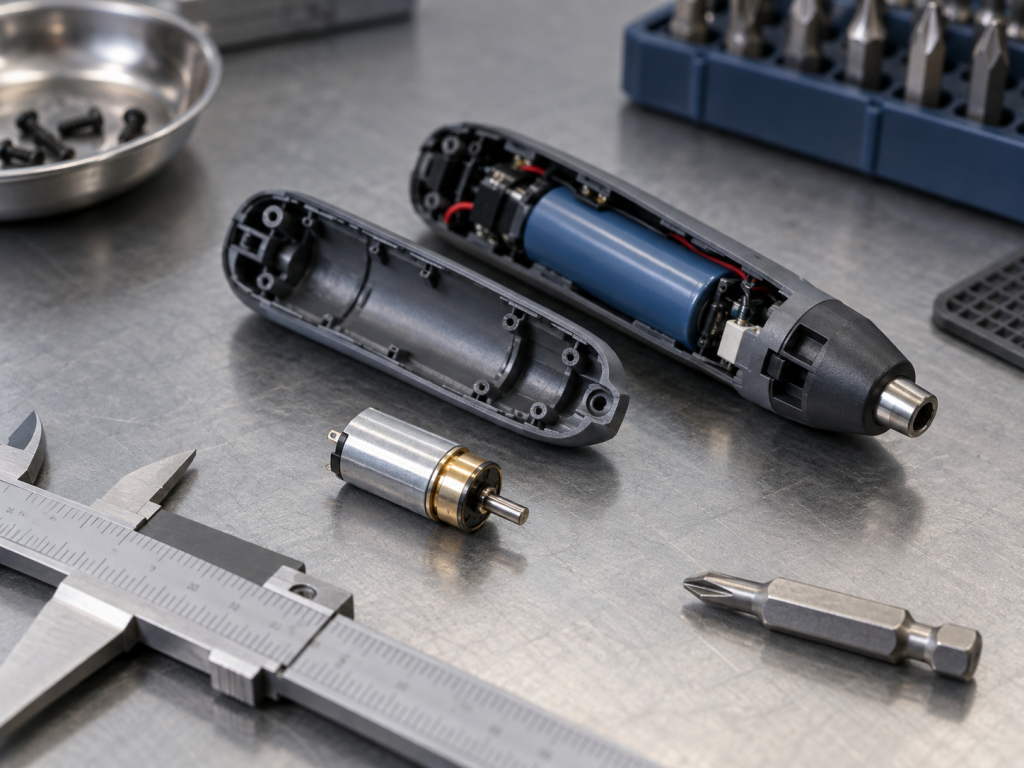

The motor has to fit inside a grip or barrel, not the other way around.

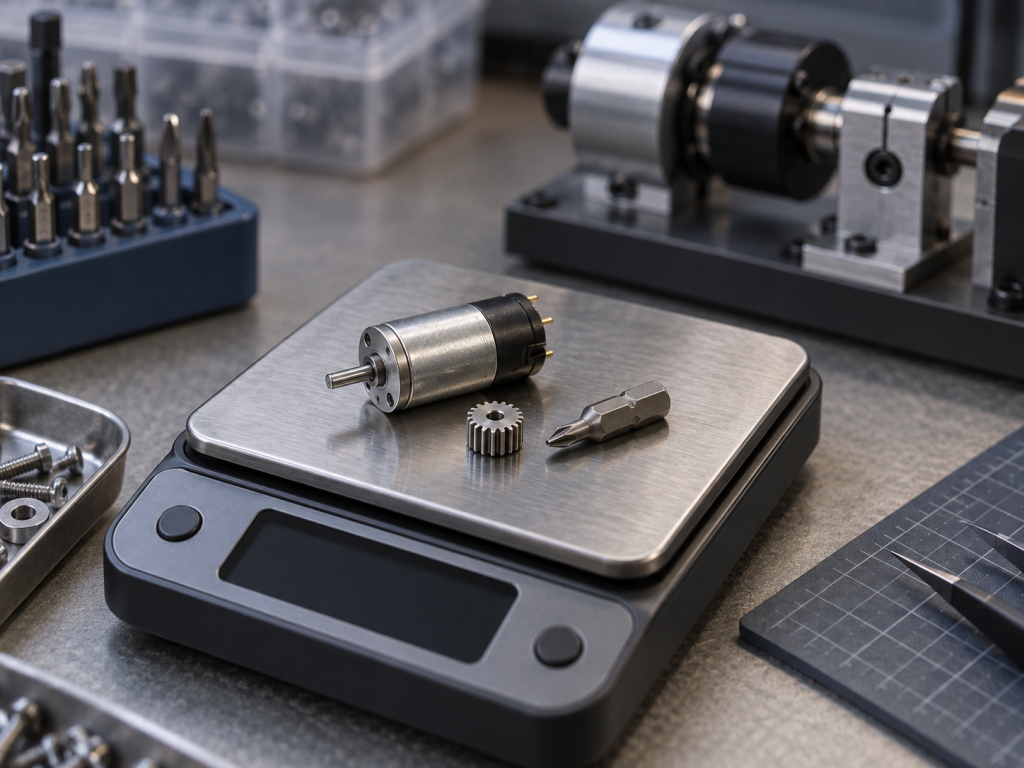

Housing diameter and length are limited, so the motor must be sized to the tool.
Every extra gram adds user fatigue over a shift.
Every millinewton-meter of torque saved on gearing means a smaller battery pack is needed.
A cordless tool that draws too much current per cycle burns through packs fast.
A brushless motor for power tools typically wins here over a comparable brushed unit at the same output.
Drilling, impact driving, and cutting all transmit repeated mechanical shock back into the motor and bearings.
The motor and its bearings must survive that repeated mechanical shock.
Some tools run in short bursts, such as screwdrivers and riveters.
Others need sustained output under continuous load, such as grinders, pumps, and sprayers.

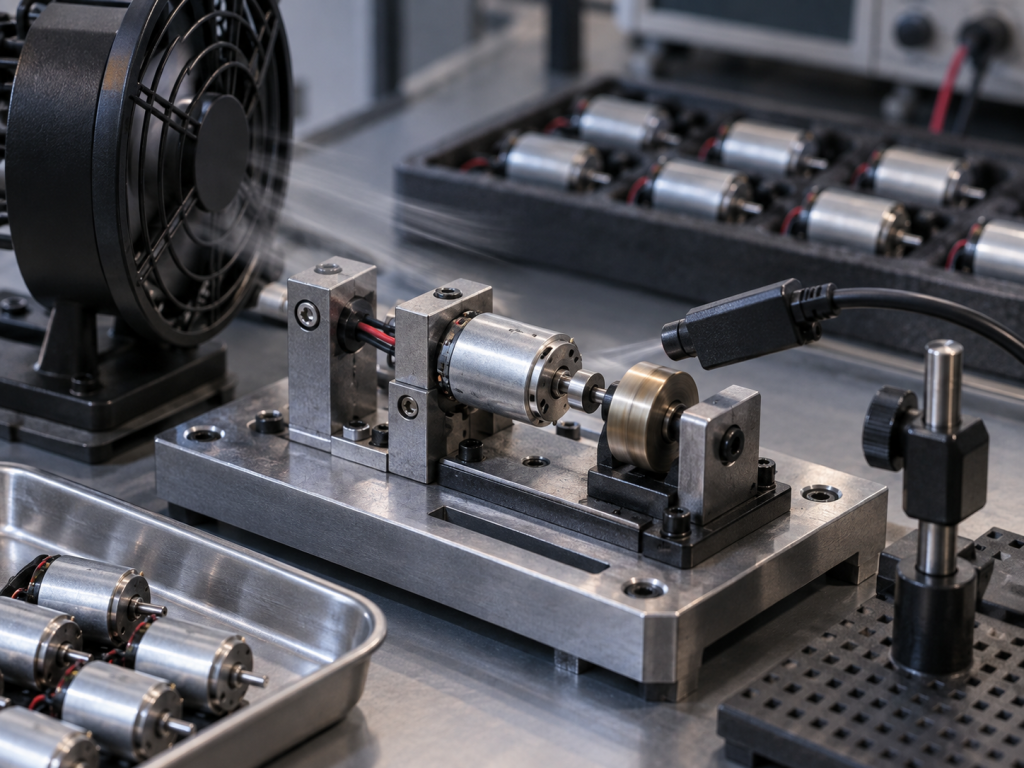

Anything held near the operator's hands or face needs low audible noise and low vibration.
Low noise and low vibration matter, not just raw output.
SLW Motor runs a dedicated factory in Shenzhen with 15+ years of motor and gearbox R&D experience, including work for Japanese manufacturing clients, and serves clients in 30+ countries.
Coreless and slotted BLDC options keep mass down relative to output, fitting compact power tool housings.
Brushless and coreless designs reduce wasted current draw versus a comparable brushed motor, protecting cordless runtime.
Stainless steel or powder-metallurgy shaft and housing choices suit impact drivers, riveters, and shock-heavy duty cycles.
Low noise and vibration builds matter for handheld power tools used close to the operator.
Flexible sample customization supports prototype validation, with production scaled to stable bulk delivery once a design is locked.
Every unit goes through incoming inspection, in-process testing, and final verification to keep dimensional and performance consistency stable across a production run.
Efficiency matters as much as torque, so Brushless DC Motors with Hall-sensor feedback cut wasted current.
Corded grinders and saws favor ruggedized architectures, where Brushed DC Motors stay cost-effective, and the 20mm High-Torque Brushed DC Gear Motor suits sustained cutting loads. 12mm Micro Brushed Motor with Plastic Gearbox 22mm Planetary Gearbox & Reducer Stepper Gear Motors Planetary Gear Motors
Trimmers and handheld meters need every gram, so Coreless DC Motors pair with a lightweight gearbox.
Feed mechanisms and precision fastening call for geared or stepped output, where Spur Gear Motors handle moderate-load mechanisms.
Standard catalog dimensions rarely match a tool's grip geometry exactly, so most Motor For Power Tools projects go through some level of customization.
Voltage, torque, and speed are tuned to match the battery voltage class, including 12V motor for power tools builds.
Shaft and housing materials include brass, stainless steel, powder-metallurgy alloys, or engineering plastics, chosen by shock exposure and weight targets.
An encoder is integrated where a tool needs positional feedback for a feed or clutch mechanism.
PCB soldering and wire harness assembly are offered as value-added integration for OEMs.
OEMs who want a more complete sub-assembly can receive it instead of a bare motor.
Customization covers voltage, torque, and speed tuning, shaft and housing material choices, encoder integration, and value-added PCB soldering and wire harness assembly.
SLW Motor quotes prototype-stage builds at low sample volumes and stable bulk-production run sizes once a design is locked.
Sample customization and quotation are handled through prompt inquiry replies and fast quotation feedback.
The 20mm-diameter 180-series brushed platform shows the realistic output band for handheld tool work across two winding options, at both their rated (max-efficiency) point and stall.
| Model | Voltage | Speed (rpm) | Torque (mNm) | Power (W) | Current (A) |
|---|---|---|---|---|---|
| SLW-FF180-17140 — rated | 6V | 5,869 | 2.2 | 1.4 | 0.358 |
| SLW-FF180-17140 — stall | 6V | 0 | 12.9 | — | 1.744 |
| SLW-FF180-11310 — rated | 24V | 9,759 | 3.6 | 3.7 | 0.252 |
| SLW-FF180-11310 — stall | 24V | 0 | 23.1 | — | 1.365 |
A higher-voltage tap or an added gearbox stage shifts these numbers toward the end of the torque/speed curve your tool needs.
SLW Motor holds ISO 9001:2015 certification and tests to RoHS compliance, with documented incoming inspection, in-process testing, and final verification before units ship.
SLW Motor can quote a brushed, brushless, coreless, or geared build sized to your tool's envelope and duty cycle, whether you are validating a first prototype or re-sourcing a proven design for stable bulk production.
The same quoting process covers both a first prototype and a proven design being re-sourced for stable bulk production, so you can move from validation to volume without changing suppliers.
Before you lock a platform, read the Brushed vs Brushless DC Motors buyer's framework for background on the trade-offs.
To get a quote for a motor for power tools, contact SLW Motor with your target voltage, torque, and envelope, and expect a prompt reply on feasibility and pricing.
Quick answers on the best motor for power tools, brushless and coreless options, and how to match a motor to your tool.
There is no single best motor for power tools — match the motor family to the tool's duty cycle, envelope, and battery budget.
It uses electronic switching instead of physical brushes to commutate current, cutting friction losses and wear for longer runtime per charge.
Handheld and portable tools are typically built around brushed DC motors, brushless DC motors, and coreless motors.
